What is a battery’s capacity? In a nutshell, battery capacity is a measure of the energy it can store. When you test for capacity, you’re looking at the battery’s ability to deliver a specified amount of current at a constant rate to a specified end voltage for a specified time. We determine capacity by filling the battery with energy and then seeing how long it takes to empty that energy.
Specifications
Discharging current range: 2 A to 50 A settable
Cut off voltage: 09.50 volt to 11.50volt settable
size: (H)160MM X (W)180MM X (D)280MM
Remotely operate this device using Android application.
Safety instructions
Connect battery with proper
Do not test discharged
Make sure test completed before disconnecting
Do not block ventilation area of the machine during
If any difficulty during test then take advice from trained person or watch demo videos available on you
keep this machine away from
for service please call company authorized
Operation
Before use
Read the battery operating instructions before connecting up the
make sure battery is fully charged before
Clean the battery Take care that while doing so, your eyes do not come into contact with dirt.
Ensure sufficient
Connection
Connect the positive Lug(Red wire) of the tester to positive pole of the
Connect the negative Lug(Black wire) to the tester to negative pole of the
TERMINOLOGIES AND MEANINGS
END VOLTAGE
This is a battery voltage level, up to which the battery is
To know the exact battery capacity, normally this voltage should be 2v To 10.5v
TEST CURRENT
This is a constant current at which the battery is

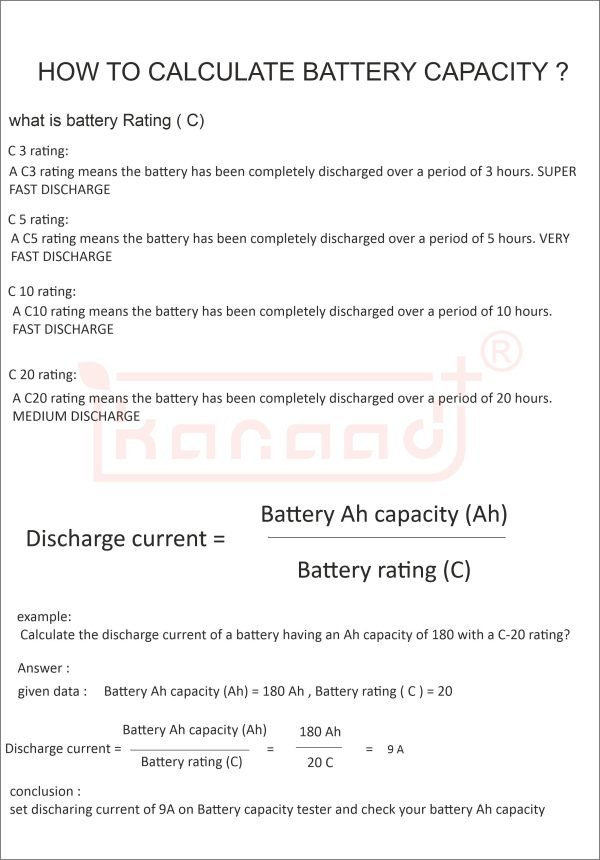

To know the exact battery capacity, this current should be set accordingly, To rating mentioned on battery (c10, c20, c5).
TEST TIME
This is a user-selectable test duration, for which the test is
