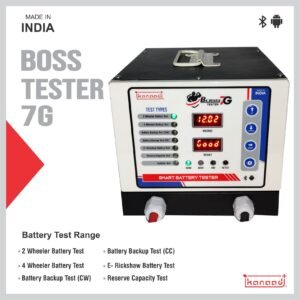

This product is designed for testing of open as well as a wide range of closed 12 v Maintenance -free lead acid batteries(VRLA), lead-acid batteries(ACID) ,Electrolyte absorbent mats batteries(AGM).The special design permits test all types of batteries in single device.
Specifications
| TEST TYPES | Range | Result | Test time |
| 2wh Battery Test | 2.5Ah to 14Ah | GOOD , WEAK , BAD | 5 sec/stage |
| 4wh Battery Test | 25Ah to 200Ah | GOOD , WEAK , BAD | 5 sec/stage |
| Battery Backup Test (c-w) | 50 watt to 400 watt | Backup time in HH::MM | At per actual time |
| Battery Backup Test (c-c) | 5Amp to 35Amp | Backup time in HH::MM | At per actual time |
| Reserve Capacity Test | Automotive battery | Reserve Capacity time in HH::MM | At per actual time |
Before Use
- Read the battery operating instructions before connecting up the
- Make sure battery is fully charged before
- Do not test discharged
- Clean the battery poles before Take care that while doing so, your eyes do not come into contact with dirt.
- Ensure sufficient
- for service please call company authorized person.
HOW TO PERFORM TESTS ON THE MACHINE ?
How to test 2wheeler Battery ?
- Connect the 12-volt battery to the tester with proper
- SET Test type Indicator on 2wheeler Battery Test Using UP & DOWN
- Press Next key to go in to next
- Set Ah capacity of the battery on the display using UP & DOWN
- Press Next key to start the
The machine will perform 3 stage HRD test and after that result will show on the screen
How to test 4wheeler Battery ?
- Connect the 12-volt battery to the tester with proper
- SET Test type Indicator on 4wheeler Battery Test Using UP & DOWN
- Press Next key to go in to next
- Set Ah capacity of the battery on the display using UP & DOWN
- Press Next key to start the
The machine will perform 3 stage HRD test and after that result will show on the screen.
